Instructions for Interval Labels

This instruction will allow you to visualize multiple values at once. Go to Visex Layer Types - Interval Label. In the dialog box that opens, select Database and Interval File.

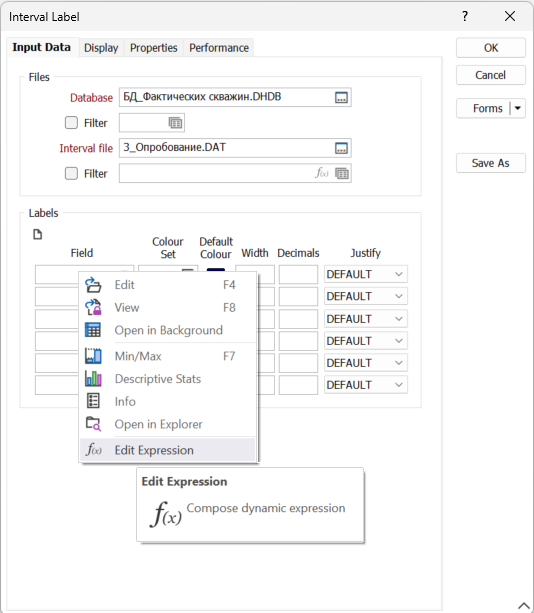

In the Field column, right-click, and use the Edit Expression command.

In the window that appears, you need to write an expression through the Number Formatting, select the FIXED command, then select Variables. In Variables, click on the Fields line and select the data to be displayed there.

First action:

Second action:

The third action: here you need to specify the number of decimal places and the separator. The output is the expression as shown on the screen. =FIXED([Au | ppm], 2) + “;”. Then click on OK.

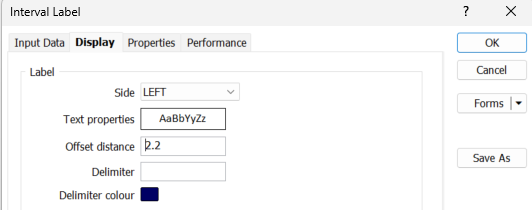

In the Display, in Text Properties, set the size to Scaled and specify the required size. Next, in the Offset distance, specify the offset parameters

And so on for each element.
